Hawke

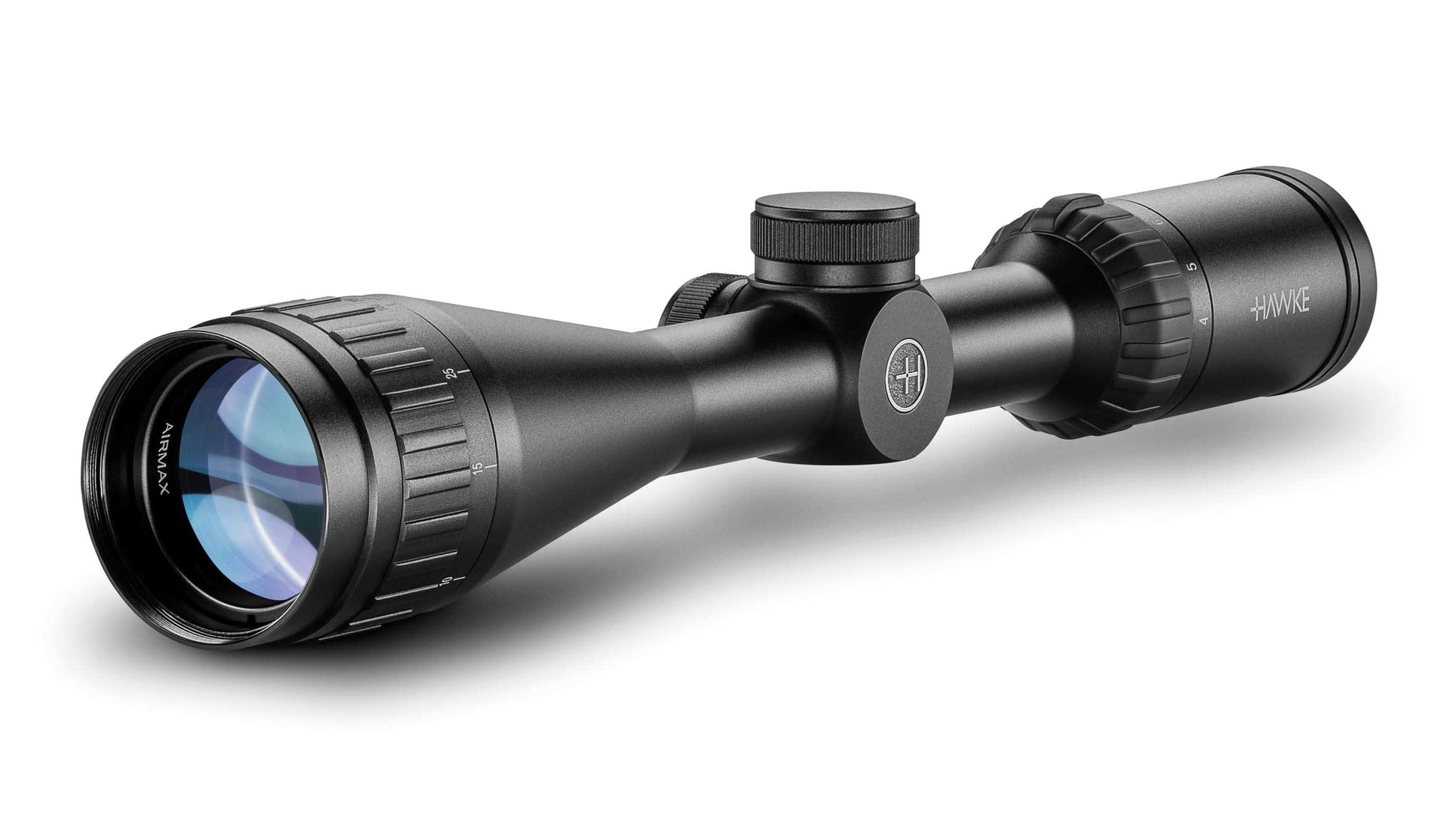

Hawke Airmax 4–12x40

Hawke Airmax 4–12x40

Regular price £209.00 GBP
Regular price Sale price £209.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Specialist scopes designed by airgunners for airgunners!

Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.

  • Capped Low-Profile Turrets
  • 1 Inch Mono-tube chassis
  • Wide Angle
  • 16 layer Fully Multi-Coated lenses
  • High torque zoom ring
  • Fast focus eyebell
  • AMX reticle designed for airguns

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke No-Fault Lifetime Warranty.

AMX Reticle

Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.

Half Mil Dot spacing on the lower post provides increased aim points for long shots.

The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.

  • More Reticle Information
Line Drawing

Optical System
System H2
Scope Tube
1 Inch
Magnification
4 - 12x
Objective Lens
40mm
Reticle
AMX
Parallax
Adjustable Objective
Focal Plane
SFP (Second Focal Plane)
Lens Coating
Fully Multi-Coated - 16 Layers

Field of View
29.9 - 11ft @100yds
10 - 3.7m @100m
Field of View (°)
5.7 - 2.1
Eye Relief
3.5in
90mm
PX/Focus (Error free from)
10yds - ∞
9m - ∞
Exit Pupil
0.39 - 0.13″
10 - 3.3mm
Click Value
1 4MOA

Turret Type (Elevation)
Capped, Low-Profile, Resettable
Elevation Turret Clicks (max)
80 MOA

Turret Type (Windage)
Capped, Low-Profile, Resettable
Windage Turret Clicks (max)
80 MOA

Ocular Type
Fast Focus
Power Selector
Rubber Coated Posi-Grip

Length
12.9in
327mm
Weight
18.4oz
522g
